Sapphire AV

L Shape Extension Brackets 30cm

L Shape Extension Brackets 30cm

  Product SKU: SSB30

104 in stock

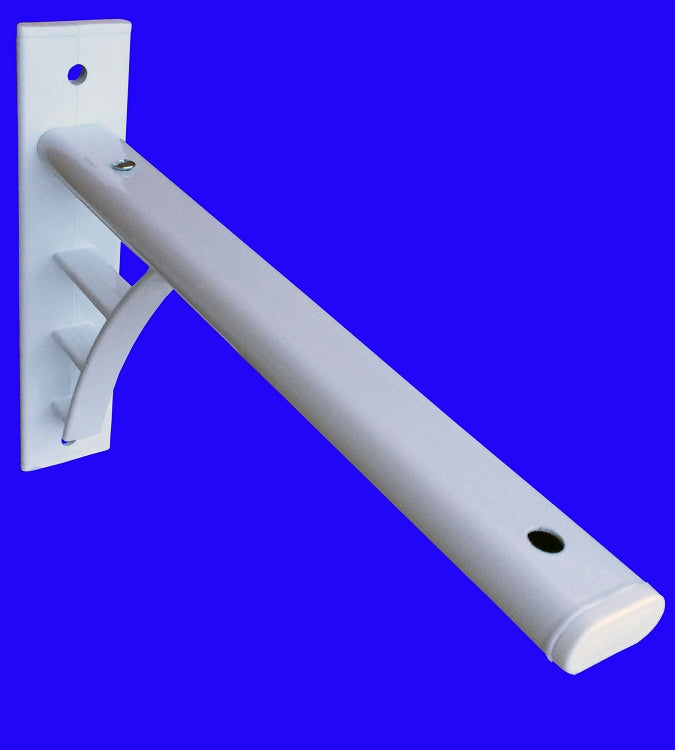

Introducing our range of Screen Extension Brackets, specially designed to accommodate most projection screens up to 3000mm in length. These brackets are the ideal solution when you need to mount manual or electric screens on a wall at a distance from the screen cassette.

Key Features:

  • Suitable for most projection screens up to 3000mm in length.
  • Designed to fix manual and electric screens on a wall, providing distance from the wall to the screen cassette.
  • Manufactured from durable steel tube and painted white for a clean look.
  • Supplied with fixings to securely attach to the screen cassette.
  • Note: Wall fixings are not included; you will need to procure them separately.
  • Each bracket is provided in pairs, offering stability and balance during installation.
  • The wall supporting arm measures approximately 22cm.

Load Capacity:

  • Our 30cm brackets are rated to hold a maximum working load of 30KG each, making it a total of 60kg per pair.
  • For your assurance, we conducted individual load tests, and the brackets withstood up to Wall supporting arm approx 22cm. The safe working load for each bracket is 30kg each side making 60kg total for the screen.
  • They have been tested to destruction at 115kg each making 230kg for the pair. (Use only working load as above).

Quality and Reliability:

  • We take pride in providing high-quality products, and our Screen Extension Brackets are no exception. Each bracket is designed to withstand heavy loads and perform exceptionally.
  • Our testing process involved destructive tests, and the brackets proved their strength and durability.

For additional peace of mind, you can view the certificate confirming the successful load tests by clicking below.

Choose our Screen Extension Brackets to achieve secure and flexible mounting for your projection screens, ensuring a flawless projection experience.
