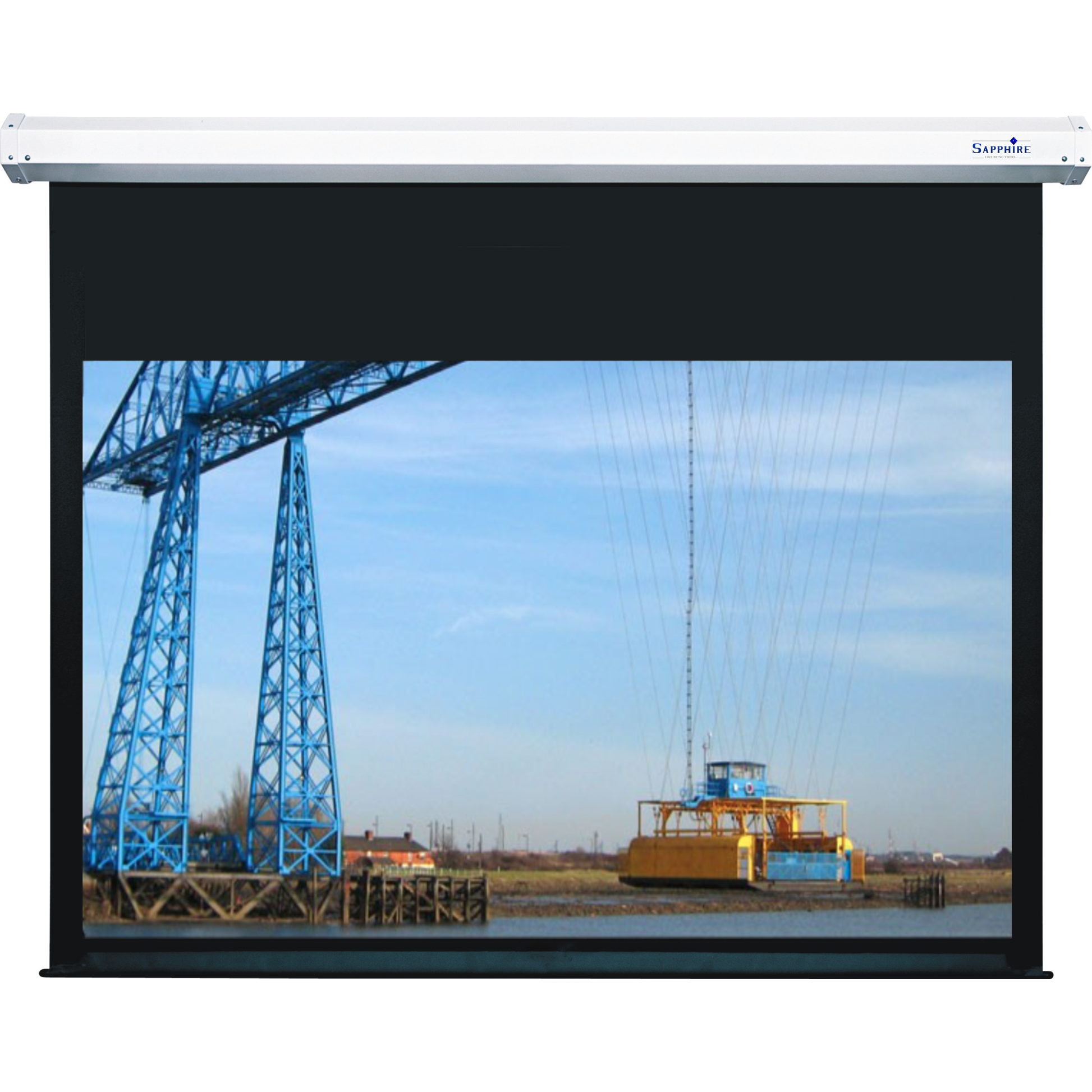

Sapphire Electric Radio Frequency Screen 16:10 Format Viewing Area 4878mm x 3048mm (not channel fix) Approx Case Dimensions L 5283mm x H 232mm x D 217mm

Description:
Sapphire Crystal Electric Projector Screen with Handheld Radio Remote Control Picture Enhancing Black Border: Framing the image for an excellent viewing experience.

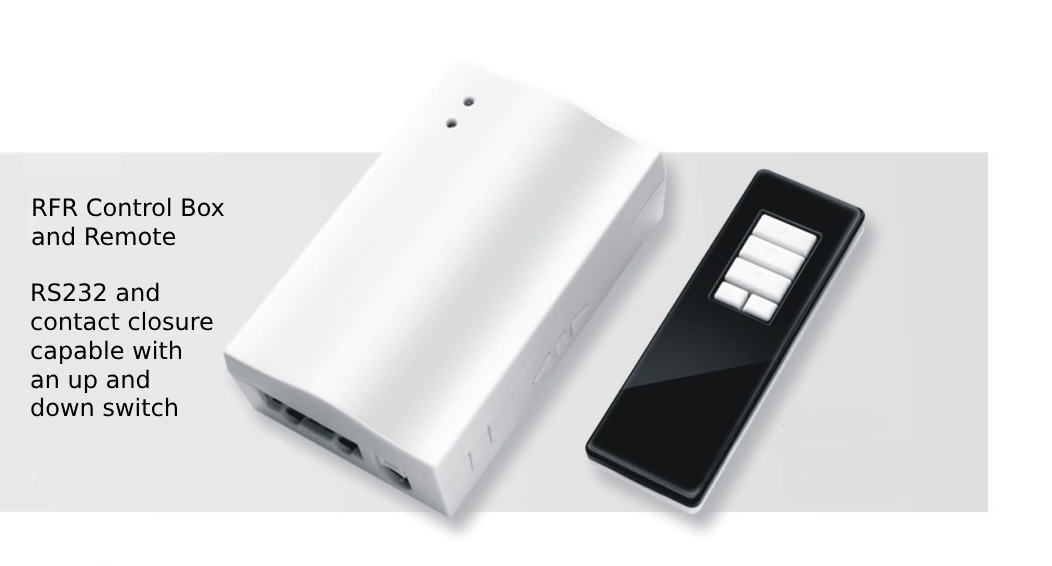

Remote Control and Inline Wall Switch:

• Supplied with a radio remote control and an inline wall switch featuring up and down control.
• Control Options: Operate the screen via RS232 or contact closure using the inline wall switch.
• Remote Control Range: The handheld radio remote control operates the screen up to 25 meters away.
• Energy Saving: Ultra-low power consumption for energy efficiency.
• Stylish White Casing: Allows discreet installation in any environment.
• Power Cable: 2.7 meters long with a standard UK power plug; inline wall switch situated halfway down the cable for easy reach.
• Warranty: Backed by an outstanding 3-year warranty, ensuring excellent quality.

Installation:
Not Channel Fix - bolts to the wall at either end with fixed end brackets provided for wall or ceiling installation. See images of the end caps above and below.

Fabric:

• Matt White Fabric: Composed of triple-ply fibreglass laminate, preventing wrinkles and waves.
• Special Light Loss Prevention: Compatible with standard/long throw projectors.
• Fire, Water, and Mould Resistance: Designed to withstand these elements; can be cleaned if necessary.
• Microdots with PVC Technology: Enhances reflection for the best possible image quality.
• Gain of 1.1: Reflects the same amount of light as the projector produces, providing a true cinema experience.
• Black Backing: Enables placement in front of a window without interference.

    Range Brochure            Range Manual        CAD Drawing

How to use built in contract close or RS232 with large Sapphire Screens

How to pair a new remote


Weight: 52 KGs.
